MTFC16GAPALBH-IT
MTFC16GAPALBH-IT overview

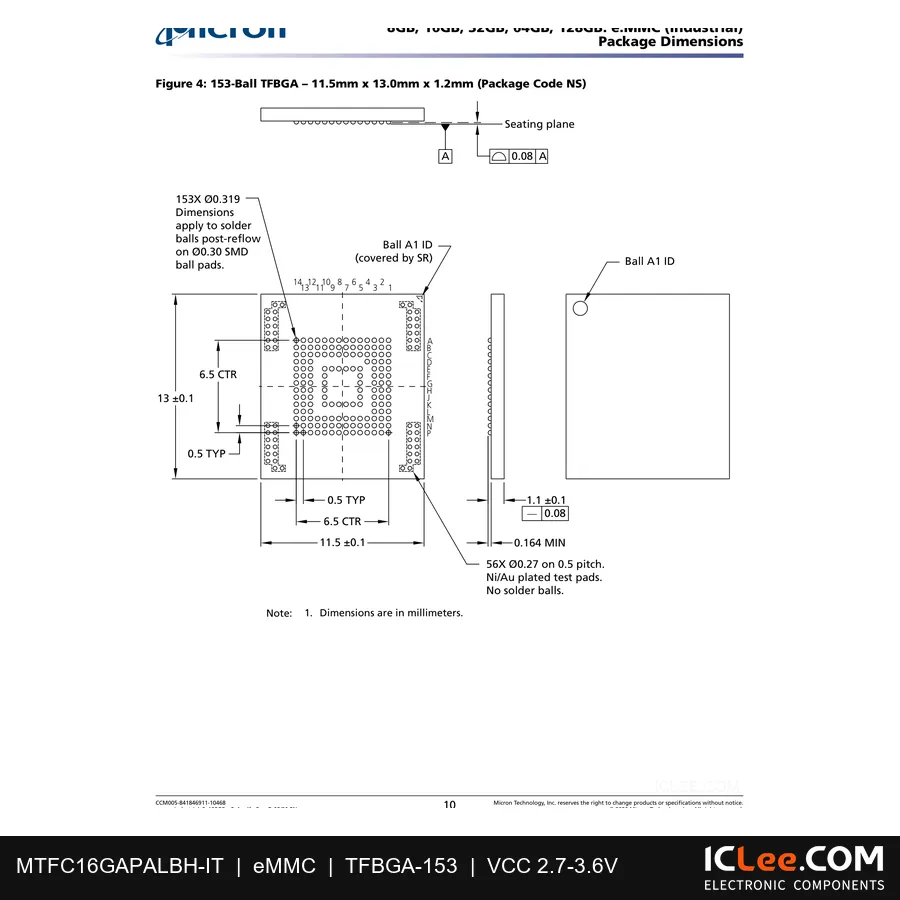

MTFC16GAPALBH-IT is a Micron 16GB eMMC 5.1 managed NAND device in a 153-ball TFBGA package (approx. 11.5 × 13 mm), combining NAND and controller for JEDEC eMMC 5.1 with HS200/HS400-class interface options. The -IT industrial grade covers −40 °C to +85 °C and is commonly used as boot or data storage on industrial, networking, and embedded platforms validated to this Micron 16GB APALBH family. When factory channels are constrained or the line is legacy, send quantity and date-code preference via Quick Quote—ICLee sources via HK/SZ hubs and can align IQC depth before you pay.
MTFC16GAPALBH-IT
MTFC16GAPALBH-IT specifications
| Typ | Beschreibung |
| Part Status | Obsolete |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 153-TFBGA |
| Voltage - Supply | 2.7V ~ 3.6V |
| Supplier Device Package | 153-TFBGA (11.5x13) |
| Technology | FLASH - NAND |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Memory Size | 128Gbit |
| Memory Organization | 16G x 8 |
| Memory Interface | MMC |
| Write Cycle Time - Word, Page | - |
| Programmable | Not Verified |
MTFC16GAPALBH-IT
MTFC16GAPALBH-IT features

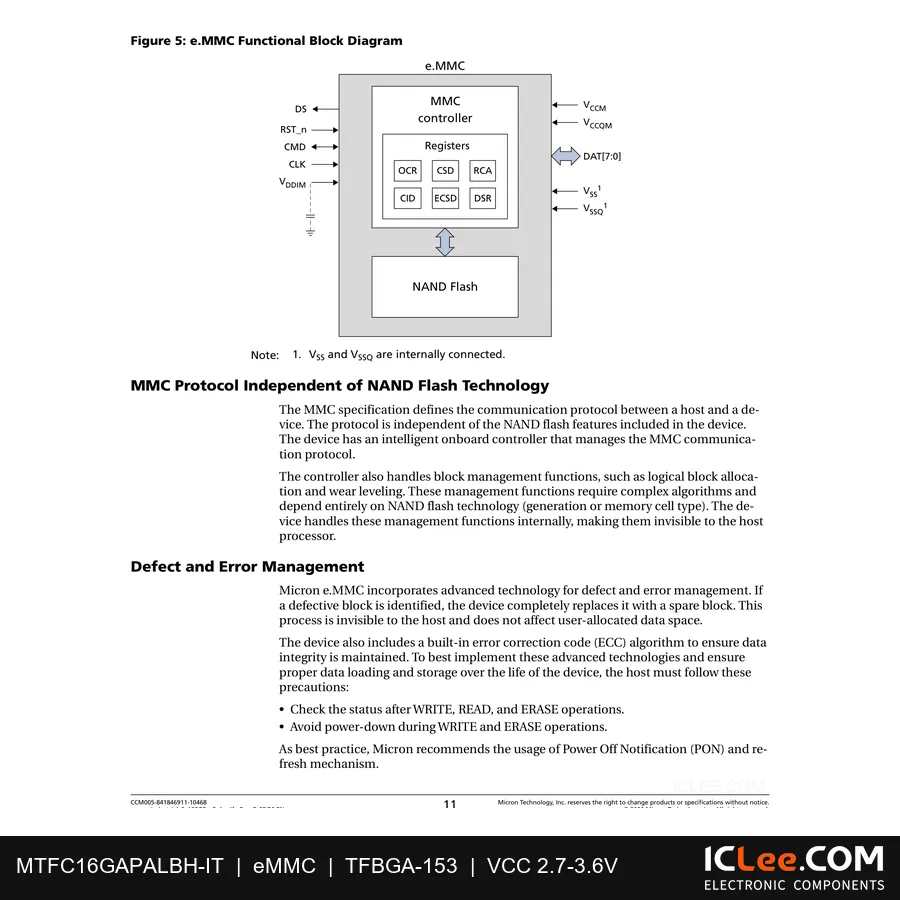

- eMMC device combining an MMC controller and NAND Flash, JEDEC/MMC standard version 5.1-compliant (JESD84-B51), with an advanced 12-signal interface and x1, x4, and x8 I/Os selectable by host.
- e.MMC I/F boot frequency 0 to 52 MHz and e.MMC I/F clock frequency 0 to 200 MHz, supporting HS200/HS400 mode.
- TFBGA-153 package.
- Supports command queue, BKOPS control, temporary write protection, boot operation (high-speed boot), and sleep mode.
MTFC16GAPALBH-IT
auto.lang_product_h2_applications
- Embedded boot and operating system storage in eMMC-based host designs
- Firmware and application code storage using eMMC boot operation
- Data and parameter storage in embedded systems with an MMC host interface
- Mass storage for portable and handheld electronic devices
- Storage for industrial embedded computing platforms within the rated temperature range
MTFC16GAPALBH-IT alternatives
GD25Q128ESIG
Beschreibung: Verpackung:
GD5F2GM7UEYIGR
Beschreibung: Verpackung:
GD25B512MEYIGR
Beschreibung: Verpackung:
GD5F4GQ6UEYIGR
Beschreibung: 4Gb, 3.3V, 104MHz,
SPI NAND (SLC), High Capacity Verpackung: WSON8
GD25Q128ESIGR
Beschreibung: 128Mb, 3.3V, 133MHz, SPI NOR, Quad I/O Verpackung: SOP8
GD5F2GM7REYIGR
Beschreibung: 2Gb, 1.8V, 104MHz, SPI NAND (SLC), Quad I/O Verpackung: WSON8
HN8T174EJKX075R
Beschreibung: flash-ufs4.0-256GB Verpackung: FBGA
F35UQA512M-WWR
Beschreibung: SPI SLC NAND FLASH 512MBIT Verpackung: Cut Tape (CT)
